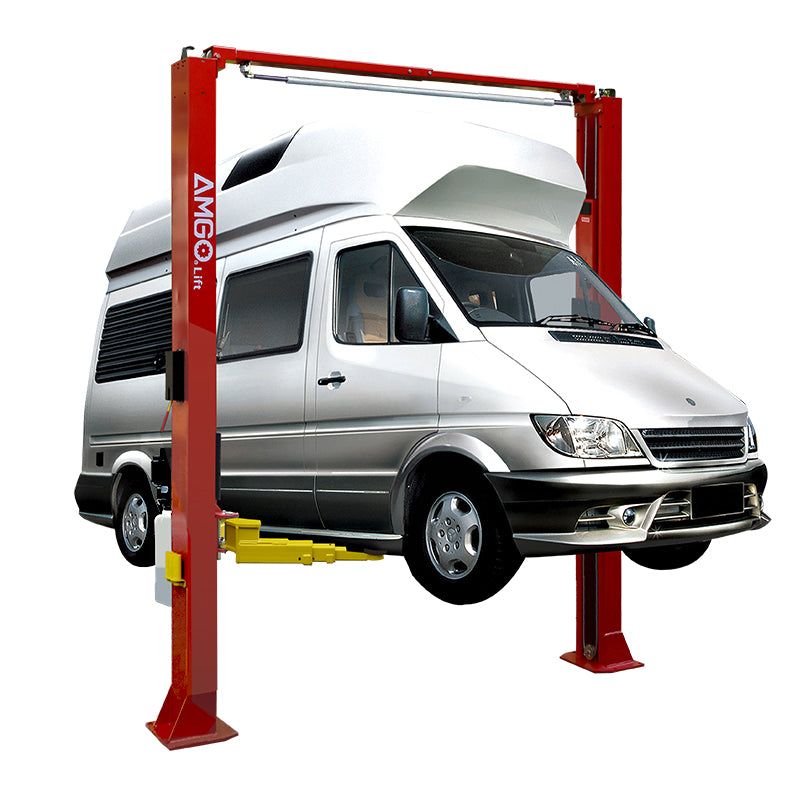

OHX-10

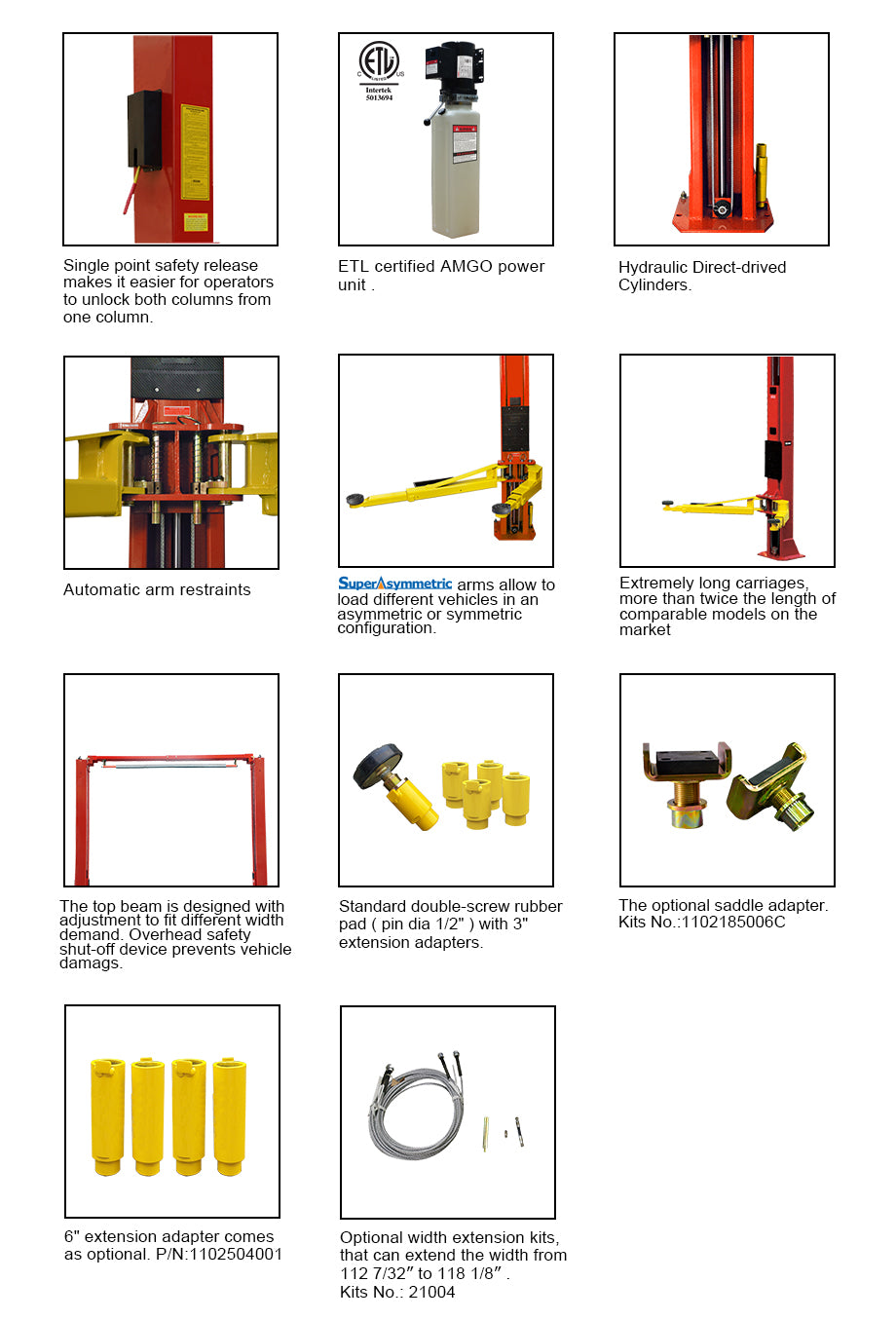

AMGO OHX-10 is well known for its excellent performance in elaborately structure. It boasts 10000lbs capacity, is built with single-piece column, split-structure top beam and extremely long carriages that ensuring easier installation and easier maintenance. Suitable for workshop and garage over 12ft, it offers width extension as option, and features AMGO Super Asymmetric technology for added convenience during loading
1. Concrete must be 4” minimum thick and without reinforcing steel bars, and must be completely dry before lift installation.
2. Concrete must be in good condition and must be of test strength 3,000psi. Solidify at least 15 days.
3. Floors must be level and contain no cracks or holes.
4. Do not install the lift on asphalt or any surface other than concrete.

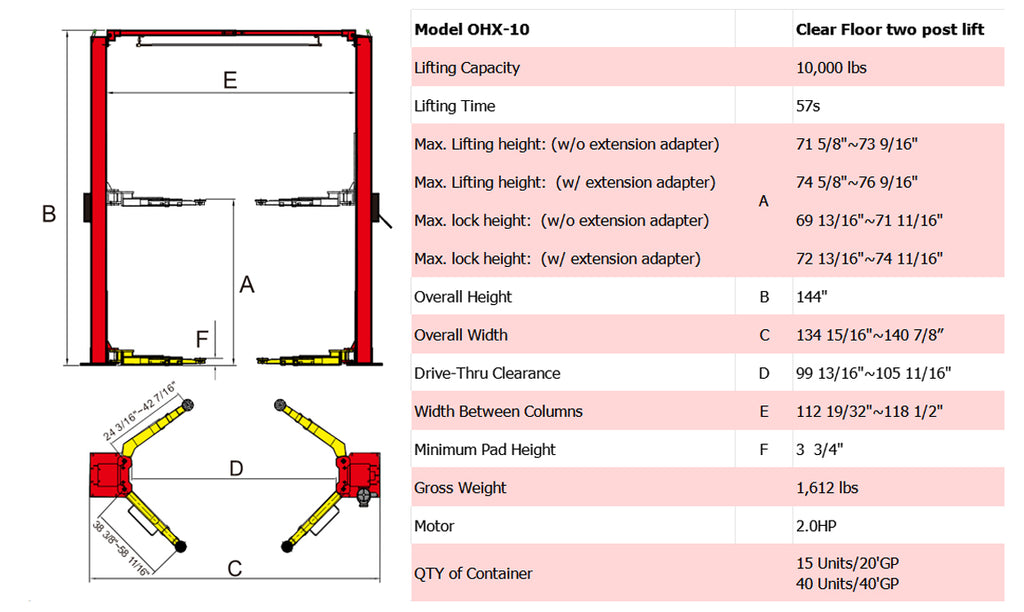

Installation ceiling height requirement: OHX-10›144”
OHX-10H›157”-167 3/16”
