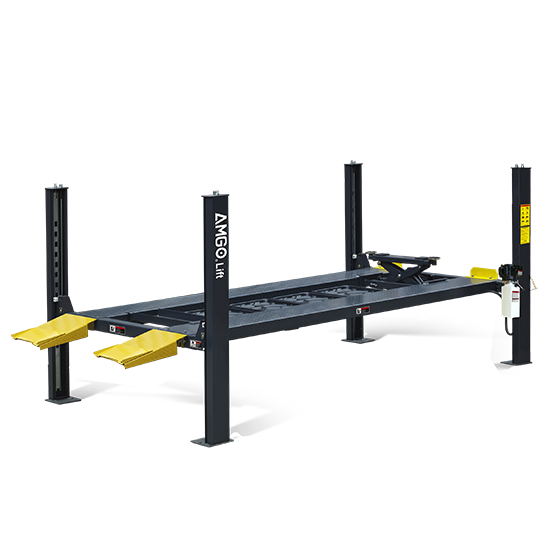

408-P
The 408 deluxe series provides a comfortable parking solution for vehicles up to 8,000lbs. 408-P is built sturdy and space-saving, offering a broader entrance and longer platforms. It doesn’t require anchoring to concrete and can be easily moved using caster kits. Deluxe & easy use, perfect application for residential and commercial
Description

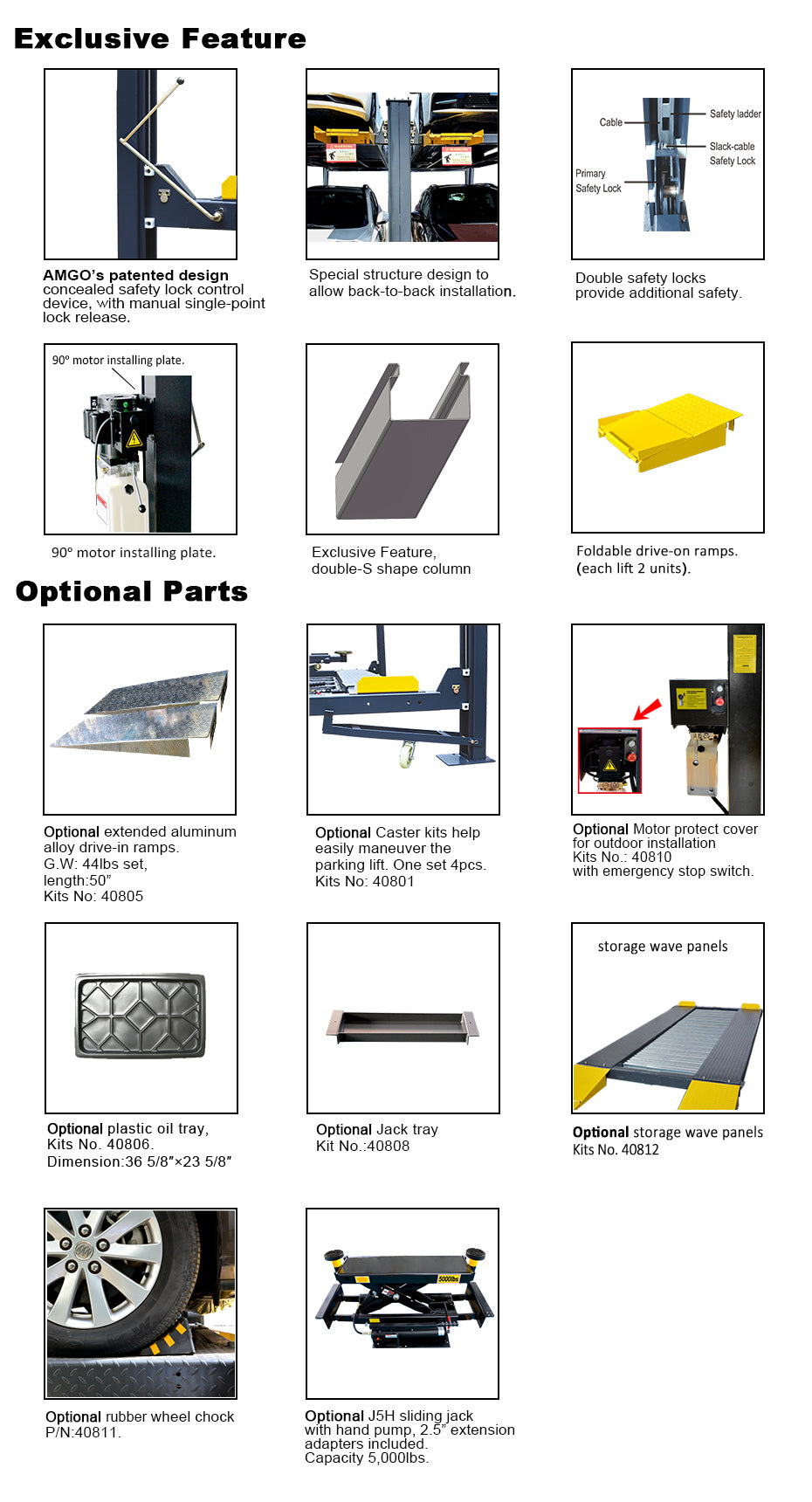

Features
● Lifting capacity: 8,000lbs.
● AMGO ETL certified power unit comes as standard.
● High quality cylinder is designed and made to a high standard.
● AMGO’s patented design concealed safety lock control device, with manual single-point lock release.
● Aero standard cables are included as standard.
● Double- S shaped columns are utilized to enhance strength.
● Non-slip platforms come with foldable drive-in ramps as standard.
● Support back to back installation to minimize space occupancy.
● Power side column can be installed at any corner.
Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.
1. Concrete must be thickness 4” minimum and without reinforcing steel bars, and must be dried completely before the installation.
2. Concrete must be in good condition and must be of test strength 3000psi minimum. Solidify at least 15 days.
3. Floors must be level and no cracks.
