BP-9

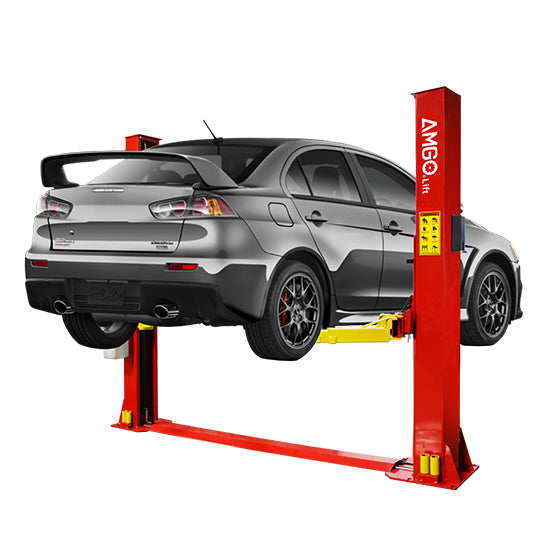

AMGO BP-9 is equipped with a dual safety lock structure and a single-point manual lock release mechanism, ensuring both safe and comfortable operation. The base plate design provides shorter columns to accommodate ceiling height 9ft or higher. Its symmetric 3-stage retractable arms offer large swing ranges to accommodate varying vehicles weighing up to 9000lbs.
Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.
1. Concrete must be thickness 4” minimum and without reinforcing steel bars, and must be dried completely before the installation.
2. Concrete must be in good condition and must be of test strength 3,000psi (210kg/cm2) minimum.
3. Floors must be level and no cracks.
4. Do not install the lift on asphalt or any surface other than concrete.
Installation ceiling height requirement:>108”
