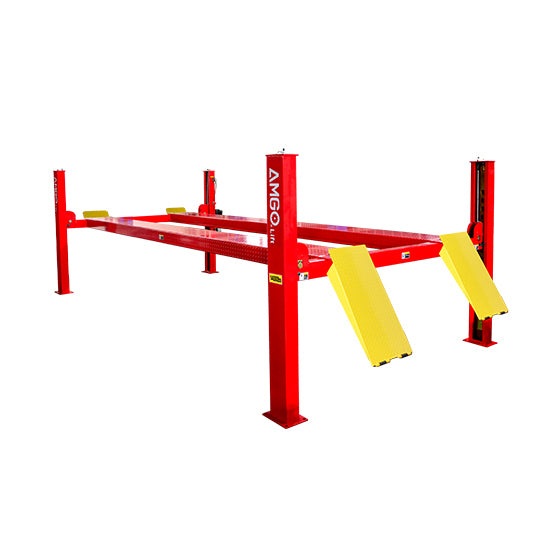

PRO-14
The Pro-14, with a 14000lbs capacity and stepless adjustable width function, is engineered to accommodate a range of vehicles from cars and vans to trucks and motor homes. This commercial-grade model features heavy-duty construction, a dual safety mechanism, and multiple lock points that can be automatically locked and released by air
Description

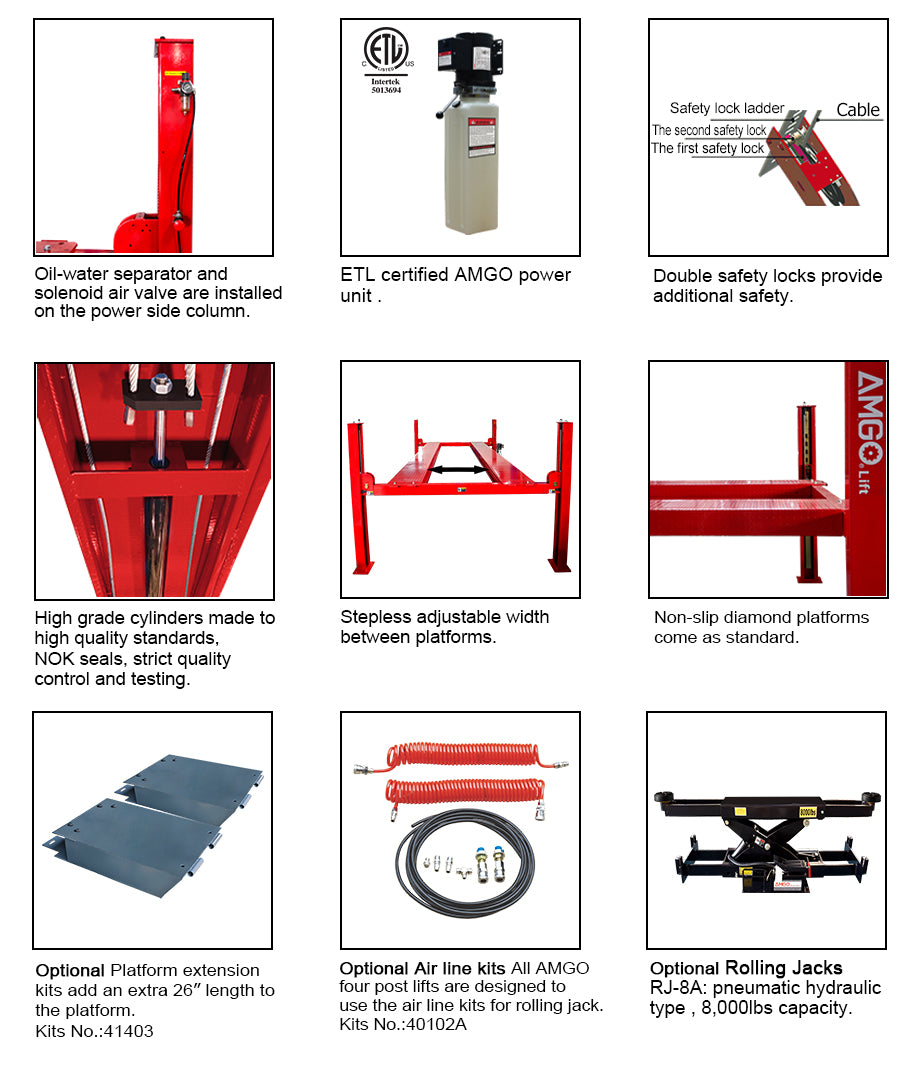

Features
• 14,000 lbs capacity.
• AMGO ETL certified power unit comes as standard.
• Mechanical self-locking safety device with air-driven lock release.
• Both primary multiple safety locks and cable-slack protection system are equipped as standard.
• Cable-driven, utilizing aircraft standard high quality cables.
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
• Non-skid diamond platforms.
• Stepless adjustable width between platforms.
Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.
1. Concrete must be thickness 4’’ minimum and without reinforcing steel bars，and must be dried completely before the installation.
2. Concrete must be in good condition and must be of test strength 3,000psi minimum.
3. Floors must be level and no cracks.
