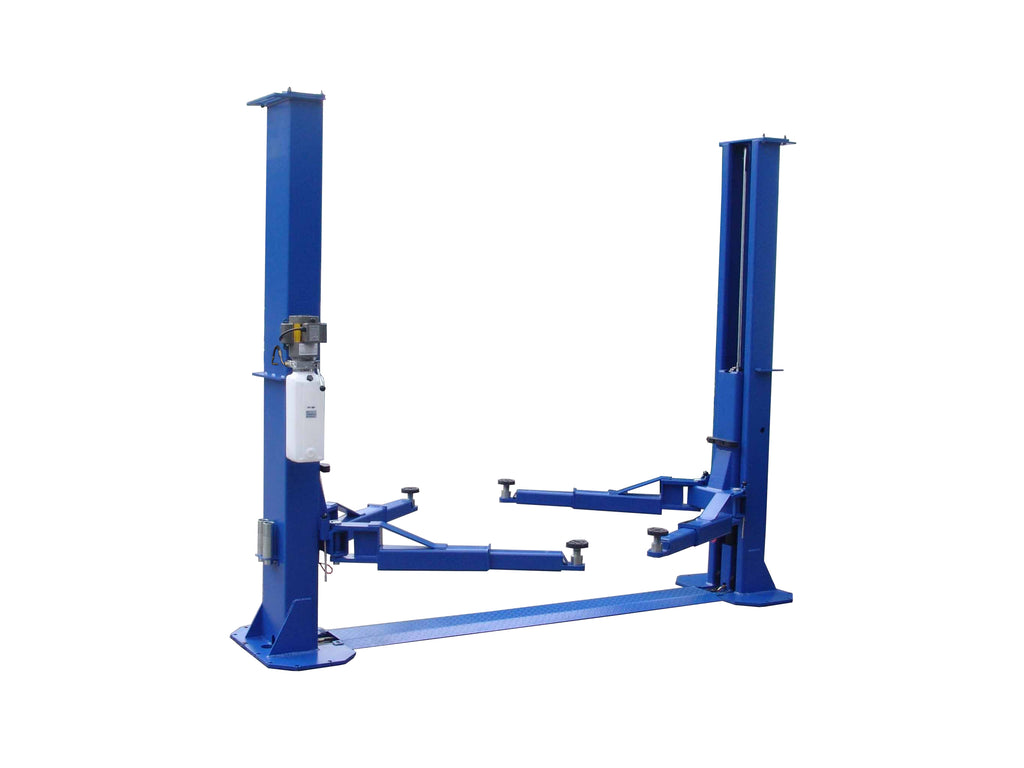

TUXEDO TP12KFX
  • TUXEDO TP12KFX
  • TUXEDO TP12KFX
  • TUXEDO TP12KFX
  • TUXEDO TP12KFX
TUXEDO TP12KFX
$6,899.00

TWO POST FLOOR PLATE

TP12KFX



Two Post Floor Plate

  • 12,000 lbs Capacity
  • Symmetric Arms
  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • auto Arm Restraint System
  • Spin Up Lift Pads
  • Stackable Adapters Included
  • Internal Hose routin

    IMPORTANT NOTES

    READ THE INSTALLATION AND OPERATION MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING TO INSTALL THE LIFT.

    • Do not install this lift on any surface other than concrete, confirming to minimum specifications.

    • Do not install this lift over expansion joints or cracks. Check with building architect.

    • Do not install this lift on a second floor with a basement beneath without written authorization from building architect.

    • Do not install this lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.

    • A level floor is recommended for proper installation and operation. Concrete should be a minimum of 4-1/4” thickness and 3,000 psi tensile strength with steal or fiber mesh reinforcement.

    • The lift is intended to raise the entire body of the vehicle. Do not attempt to lift only part of the vehicle. Improper use of this equipment could result in damage to the lift, yourself or other property.

    • The lift is intended to lift vehicles only. It is not designed to lift any person or equipment containing persons.

    • Users of this equipment should be qualified, responsible and should follow the operation and safety guidelines set forth in this manual.

    • For specifications on concrete pads, please call for technical assistance.

    • Improper installation can cause damage or injury. The Manufacturer will NOT assume liability for loss or
